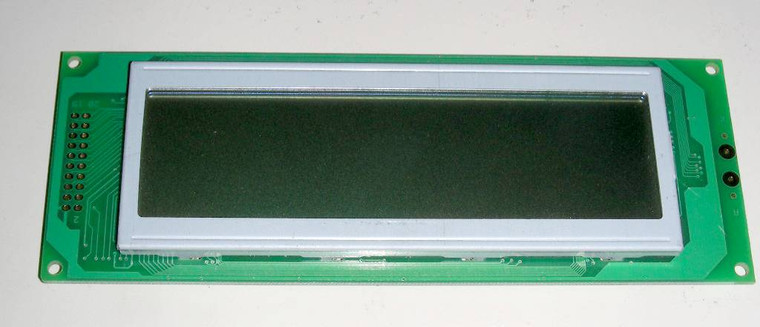

LCD DISPLAY GRAPHIC LCM
240 COLUMNS X 64 ROWS
0.41 X 0.41 DOT SIZE
Overall dimensions: 153MM Wide X 57MM High X 9.5MM (6.02 x 2.24 x .37 inches)
Viewing Area: 113mm wide x 31mm high (4.375 x 1.25 inches)
SILVER GRAY STN REFLECTIVE
POLARIZER MODE
VIEW DIRECTION: BOTTOM
CONTROLLER LSI: T6963C
NEW, ORIGINAL UNOPENED O.E.M. CASES OF 12 (Also available individually)
This is the data sheet for the DG-24064-2.
The modules we have for sale are DG-24064-09.
The differences are:
Size: The -09 is 153 x 57 x 9.5 mm
Dot size: 0.41 x 0.41
Additionally, a buyer sent us this information:
FYI if You are going to sell more of these nice displays.
The display modules I bought are actually better than Your listing suggests. They have in fact on-board Vee supply, no external negative voltage required! Pin20 is not NC as in the pin-out on the listing, it is Vee out. Connect a pot about 10.22k between 20 and Vss, then moving the contact to pin4.
| MECHANICAL DATA | ||
|
Item
|
Dimension
|
Unit
|
| Module Size | 180.0(W) x65.0(H) x 10.0(T) |
mm |
| View Area | 132.0(W) x 39.0(H) |
mm |
| Dot Size | 0.49 x 0.49 |
mm |
| Dot Pitch | 0.53x 0.53 |
mm |
| ABSOLUTELY MAXIMUM RATINGS | |||||
|
Item |
Symbol |
Standard Value |
Unit |
||
|
Min |
Typ. |
Max. |
|||
| Supply Voltage for Logic |
VDD- VSS |
0 | -- | 7.0 |
V |
| Supply Voltage for LCD Drive |
VDD- VEE |
0 |
-- | 28.0 |
V |
| Input Voltage |
VI |
VSS | -- | VDD |
V |
| PIN FUNCTIONS | |||
| Pin No. | Symbol |
Level |
Function |
| 1 |
FGND |
-- | Frame Ground (Connected to Bezel) |
| 2 |
Vss |
-- | Ground Potential (Logic) |
| 3 | VDD | -- | Power Supply For Logic& LCD (+) |
| 4 |
VEE |
-- | Power Supply LCD (-) |
| 5 |
WR |
INPUT | Data Write |
| 6 | RD | INPUT | Data Read |
| 7 | CE | INPUT | Clip Enable |
| 8 | C/D | INPUT | Code / Data |
|
9 |
NC |
-- | No Connection |
|
10 |
RESET |
INPUT |
Controller Reset |
| 11~18 | DB0~DB | I/O | Data Bus Line |
| 19 | FS | INPUT | Font Select |
| 20 | NC | -- | No Connection |
| ELECTRICAL CHARACTERISTICS | ||||||
|
Item
|
Symbol
|
Condition
|
Min. | Type | Max. |
Unit
|
| Logic Driver Circuit Power
Supply Voltage |
VDD-Vss |
-- |
4.5 |  |
5.5 |
V |
| LCD Driver Circuit Power
Supply Voltage |
VDD-VEE | ¡@ | 11.9 | 12.6 | 13.2 | V |
| Input Voltage | VIH | Notes(1) | 0.7xVDD | -- | VDD | V |
| Input Voltage |
VIL |
Notes(1) |
-- | -- | 0.3xVDD |
V |
| Supply Current(Logic) | IU
IEE |
IDD=5.0V
IEE=-15V |
-- | |
5
2.0 |
mA |
| Power Consumption | IDD | VDD=0.5V
IEE=-15V |
-- | 75 | 95 | mA |
